Key Features Section:
✔ Multi-Network Support: 4G LTE(FDD/TDD), WCDMA, EVDO, GPRS & CDMA
✔ Industrial-Grade Design: -35°C to +75°C operation, IP30 protection
✔ Flexible Interfaces: RS232, RS485 + 5x Programmable GPIOs
✔ Reliable Data Transmission: Dual-channel TCP/SMS backup, <1W power consumption
✔ MODBUS Enabled: Seamless industrial protocol integration
✔ Global Certifications: EMC Level 3 compliant, 15KV ESD protection
Applications Section:
• Smart Grid & Energy Monitoring

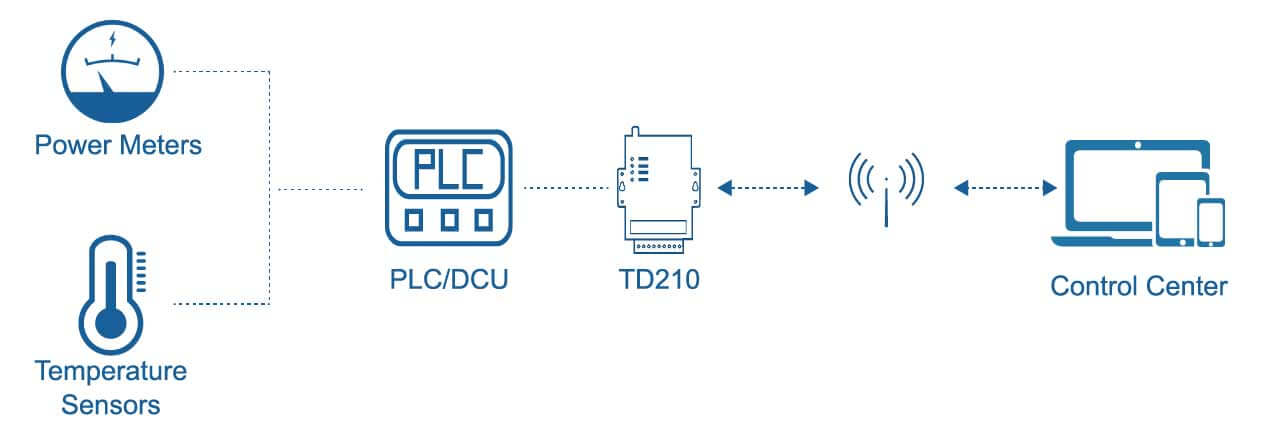

• Remote PLC Communication
• Environmental Sensing Systems
• Automated Vending Machines
• Agricultural Telemetry Systems
• Fleet Tracking & Telematics
• Industrial SCADA Networks
Technical Highlights:
- Worldwide Carrier Compatibility
- 10,000+ Hours MTBF Reliability
- 4-20mA/0-5V Analog Inputs
- TCP/UDP/MQTT Protocols
- Multi Data Center Support (5 servers)
- DIN Rail Mountable Design

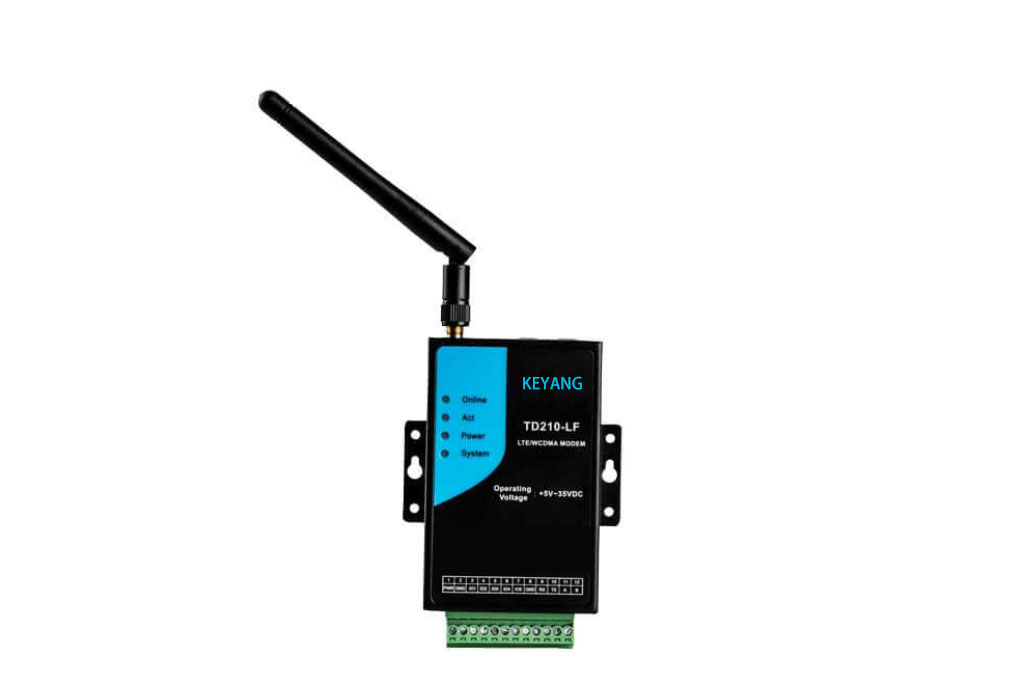

| Item | TD210 |
|---|---|
| Cellular Interfaces | |
| Antenna ConnectorSIM Slot | 1 × 50 Ω SMA Female1 |
| Serial Interface | |
| Ports | 1-RS232, 1-RS485 |
| Power Requirements | |
| Standard PowerInput Voltage | DC 12V/0.5A5-35 VDC |
| Software | |
| Network ProtocolsManagement | MQTT, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP), SMS Alarm, DNSConfig Tool, SMS, Cloud DMP (Device Management Platform)* |
| Physical | |
| Ingress Protection Housing & Weight Dimensions Mounting | IP30Metal, 208 g (0.46 lbs)91 x 58 x 22 mm (3.58 x 2.28 x 0.87 in)91 x 58 x 22 mm (3.58 x 2.28 x 0.87 in) |
| Environmental | |
| Operating Temperature | -35°C to +75°C (-31℉ to +167℉) |
| Others | |
| LED IndicatorsWarranty PeriodApprovals | Online, Act, Power, SystemStandard: 12 MonthsExtended: 2-5 Years*(Please refer to warranty policy)CE, RCM*, FCC*, NBTC(* Under progress) |
