Core Features:
✔ Global Connectivity
- LTE CAT M1/NB-IoT/EDGE/GPRS (TW810-M model)
- Multi-carrier certification (Verizon/AT&T/Vodafone compatible)
✔ Industrial Reliability
- Dual-layer watchdog protection
- -35°C to +75°C operating temperature
- IP67 protection (optional rugged enclosure)
✔ Energy Efficient Design
- 0.4W standby power consumption
- 5-35VDC wide voltage input
- Deep sleep mode (configurable via AT commands)
✔ Protocol Flexibility
- Modbus RTU/TCP conversion
- TCP/UDP/CoAP/MQTT support
- 5x parallel data center connections

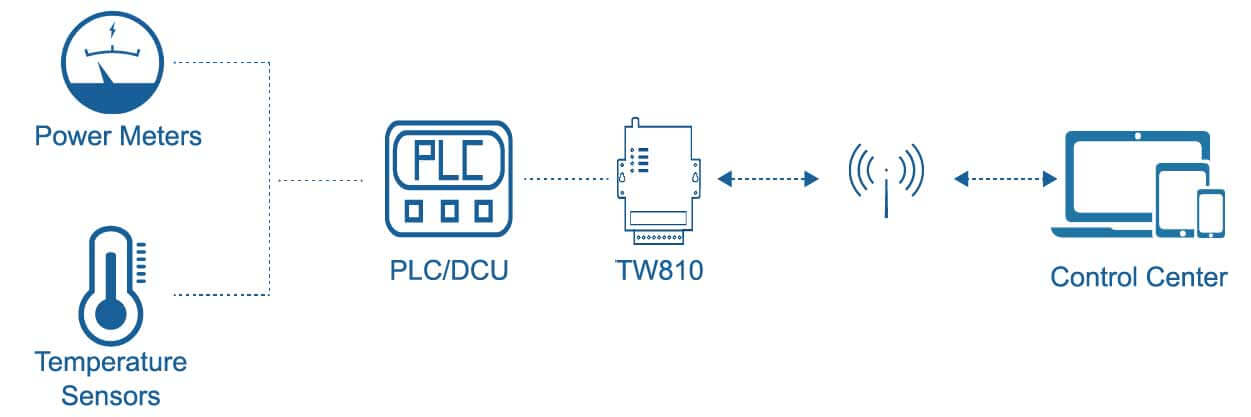

Applications:
• Smart Metering (Water/Gas/Electricity AMR)
• Environmental Monitoring Stations
• Digital Road Sign Management
• Industrial Sensor Telemetry
• Distributed Equipment Monitoring
• Smart City Infrastructure
Key Differentiators:
- 10-year lifecycle commitment
- Over-the-Air (OTA) firmware updates
- Built-in IMEI anti-tamper protection
- CE/RoHS/FCC/PTCRB certified
| Item | TW810 |
|---|---|
| Cellular Interfaces | |
| Antenna ConnectorSIM Slot | 1 × 50 Ω SMA Female1 |
| Serial Interface | |
| Ports | 1-RS232, 1-RS485 |
| Power Requirements | |
| Standard Power Input Voltage | DC 12V/0.5A5-35 VDC |
| Software | |
| Network Protocols Management | MQTT*, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP), COAP, DNS(* Pending)Config Tool, Cloud DMP* (Device Management Platform)(* May require additional cost) |
| Physical | |
| Ingress ProtectionHousing & WeightDimensionsMounting | IP30Metal, 208 g (0.46 lbs)91 x 58 x 22 mm (3.58 x 2.28 x 0.87 in)Desktop, Wall mounting |
| Environmental | |
| Operating Temperature | -35°C to +75°C (-31℉ to +167℉) |
| Others | |
| LED IndicatorsWarranty PeriodApprovals | Online, Act, Power, SystemStandard: 12 MonthsExtended: 2-5 Years*(Please refer to warranty policy)CE, RCM*, FCC*, NBTC(* Under progress) |
