Overview
The KEYANS KY463 EdgeMaster 5G IoT Gateway is a powerful device built for IoT, M2M, and eMBB applications. It offers fast 5G NR connectivity and advanced edge computing, perfect for water treatment, smart cities, and more. With extensive I/O and a programmable Linux platform, it connects industrial equipment to the cloud seamlessly.
Key Features
- High-Speed 5G: Up to 3.4Gbps DL and 250Mbps UL with 5G NR Sub-6 (SA/NSA), plus 4G LTE-A and 3G support.
- Programmable: OpenWRT Linux OS with C/C++, Python, and LUA via SDK.
- Rich Connectivity: 5x Gigabit Ethernet, 1x RS232, 1x RS485, 2x DI, 3x ADC, 3x relay outputs.
- Edge Processing: Up to 32GB storage via Micro SD for data and analytics.
- Protocols: MQTT, Modbus RTU/TCP, HTTP, SNMP, TCP/UDP.
- Security: IPsec, L2TP, PPTP, GRE, OpenVPN, and WWAN/WAN failover.
- Optional WiFi: Dual-band 2.4G/5G (802.11b/n/g/ac).
Applications
- Water Treatment: Real-time monitoring and control.

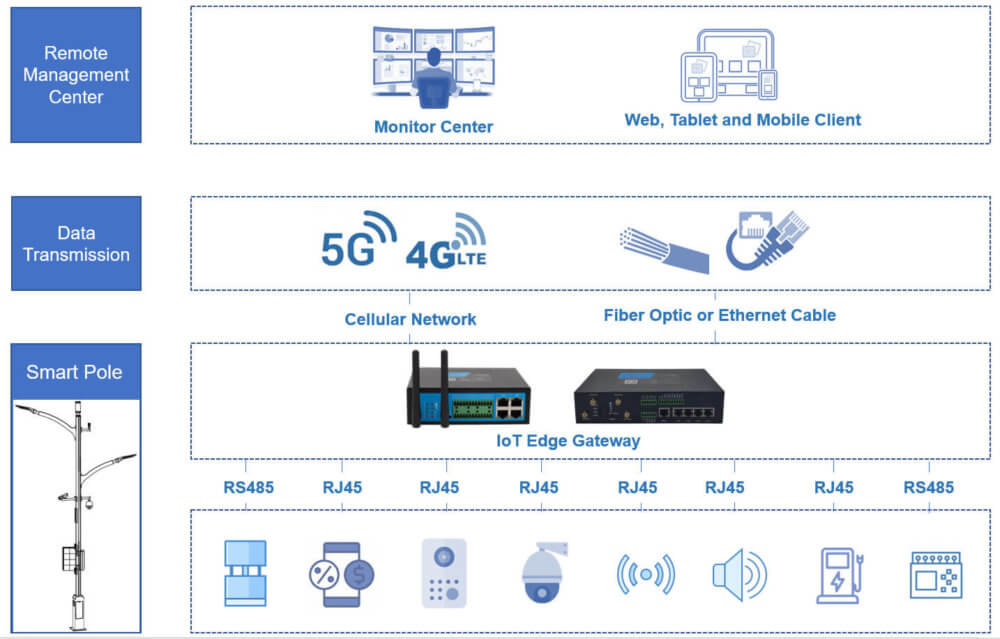

- Smart Infrastructure: Supports smart poles and traffic systems.
- Commercial Use: Powers vending machines and digital signage.
Why Choose EdgeMaster?
With top-tier 5G speeds, robust I/O, and edge computing, the KY463 EdgeMaster ensures reliable, scalable IoT solutions for industrial and smart applications.
Technical Specifications
System
● CPU: 32-bit, 880MHz, dual core
● Flash: 32MB (Extendable to 128MB, Option)
● RAM: 256MB DDR3
Cellular Interface
● Antenna Connector:
4 × 50 Ω SMA Female(5G Version TG463-NR)
2 × 50 Ω SMA Female(4G Version TG463-LF)
● SIM Slot: 1 or 2(Option), Standard SIM, 2FF
Ethernet Interfaces
● Ports: 5 x RJ45 (1-WAN, 4-LAN or 5-LAN, configurable via Web UI)
● Data Rate: 10/100/1000Mbps (Auto-Sensing), Auto MDI/MDIX
● PoE: 4 PoE PSE, 802.3af(Option)
Serial Interface
● Connector: Terminal block, 3.5 mm female socket with lock
● Ports: 1 x RS232, 1 x RS485, 15KV ESD protection
● Baud Rate: 100bps to 230400bps
Wi-Fi
● Antenna Connector: 4 × 50 Ω SMA Male
● Standard 2.4G/5GHz
IEEE 802.11b/g/n/ac, supporting AP and Client modes
● Transmission Rate: IEEE802.11b/g: Up to 54Mbps
IEEE802.11n: Up to 300Mbps
IEEE802.11ac: Up to 1.7Gbps
● Security Open,WPA,WPA2,WPA/WPA2, Enterprise, Radius
GNSS (Optional)
● Module: Built-in independent GPS module, or GNSS from cellular module
● Antenna Connector: 1 × 50 Ω SMA Female
I/O
● Connector: Terminal block, 3.5 mm female socket with lock
● ADC: 3
12-bit AD, supports 4-20mA current signal input, or 0-5V voltage signal input (Option)
● DI: 2
Logic 0: Wet contact 0-3VDC, or dry contact close
Logic 1: Wet contact DC 5-30V, or dry contact open
● DO(Relay): 3
Maximum switch voltage 30VDC/250VAC
Maximum switch current: 5A
● Power Output: 2-channel 12V, current 1A
Built-in overcurrent protection, for external devices DC power input
External Storage
● Micro SD 1 x TF card, Up to 32GB
● Usage: User Program, Data Storage and Firmware Upgrade
Power Supply and Consumption
● Connector: 2-pin with 3.5 mm terminal block
● Standard: DC 12V/1.5A
● Power Input: 5-35 VDC
● Idle Mode: 253〜360mA@12VDC
● Working Mode: 318〜425mA@12VDC
Software
● Network Protocols: PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, SSH, etc.
● Serial Port: MQTT, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP)
● VPN Tunnel: IPsec/PPTP/L2TP/GRE/OpenVPN
● Firewall: ACL/DMZ/Port Mapping/MAC Binding
● Management: Web, CLI, SMS, Cloud DMP (Device Management Platform)
● Reliability: WAN Failover, Hardware & Software watchdog
● Secondary Development: OpenWrt based, support Python, LUA and SDK
Physical
● IP Rating: IP30
● Housing: Metal
● Weight: 1,000g(2.2lbs) without accessories
● Dimensions: 207*124*47mm(8.15*4.88*1.85in)
● Mounting: Din-rail, Wall mount, Desktop
Environmental
● Operating Temperature: -35°C to +75°C (-31℉ to +167℉)
● Storage Temperature: -40°C to +80°C (-40℉ to +176℉)
● Relative Humidity: 93% ± 3% (non-condensing) at 25°C/77℉
Others
● LED Indicators: Signal strength, WIFI, System(SYS), Online, Power (PWR), Alarm
● Built-in: Watchdog, RTC, Timer
● Certifications: CE*, RCM*, FCC*
● Warranty Standard: 12 Months Period Extended: 2-5 Years
