Overview
The KEYANS KY511 PowerRTU Industrial Cellular Telemetry Unit is a rugged, feature-packed solution designed for remote monitoring in tough industrial settings. Integrating PLC capabilities, a comprehensive I/O module, and a 4G/3G modem, it excels in applications like wastewater treatment, weather stations, and flood alarms. Equipped with an LCD display, keyboard, and a powerful config tool, it enables engineers to configure and gather data from diverse sensors effortlessly, no programming required.
Key Features
- Multiple I/O: 2x RS232, 2x RS485, 8x DI, 8x DO (relay), 8x ADC, 2x pulse inputs, 3x power outputs, USB port.
- Data Storage: Up to 5 data centers, 16MB Flash, and 16GB Micro SD card option.
- Easy Configuration: Config tool software, on-device keyboard, and remote setup.
- Remote Management: Via SMS, commands, or KEYANS DMP software.
- Data Protocols: MQTT, Modbus RTU/TCP, TCP/UDP, Modbus to JSON, and custom modes.
- Extendable Features: Battery status monitor, image capture (serial camera), external LCD/LED via USB.
- Robust Design: Industrial-grade, always-online mechanism, suitable for harsh conditions.

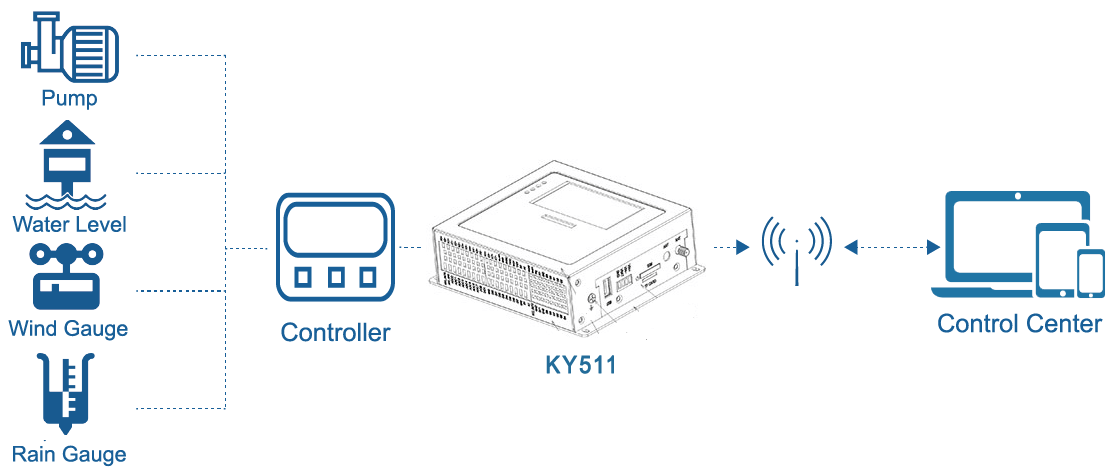

Applications
- Water Systems: Water quality, wastewater treatment, and pump control.
- Environmental Monitoring: Weather stations and air quality.
- Safety Alerts: Flood disaster alarms.
Why Choose KY511?
The KY511 PowerRTU delivers unmatched I/O flexibility, easy deployment, and reliable performance, making it perfect for integrating legacy and modern industrial systems.
Technical Specifications
- CPU: Industrial 32-bit MCU
- Memory: 256KB SRAM, 16MB Flash
- Cellular: 2x 50Ω SMA Female antennas, 1x SIM slot, 15kV ESD protection
- Serial Ports: 2x RS232, 2x RS485, 300bps to 230400bps, 8kV ESD (RS232), 15kV (RS485), 3.5mm terminal block with lock
- I/O:
- Analog Inputs: 8x 16-bit ADC (4-20mA current or 0-5V voltage, optional)
- Digital Inputs: 8x DI (spec TBD, consult KEYANS)
- Digital Outputs: 8x relay outputs (spec TBD, consult KEYANS)
- Pulse Inputs: 2x pulse inputs (spec TBD, consult KEYANS)
- Connector: 3.5mm terminal block with lock
- Power Outputs: 3x DC outputs (spec TBD, consult KEYANS)
- Power Supply: 3.5mm terminal block with lock, DC 12V/1.5A (assumed, confirm with KEYANS)
- Power Consumption: TBD (consult KEYANS for communication/idle specs)
- Display & Input: 16-key keyboard (2x8 keys), supports external 192x64 dot matrix STN LCD via USB
- Storage Expansion: Micro SD slot, up to 16GB
- Housing: Metal, 770g (1.70 lbs), 154.2x127x46.6mm (6.07x5x1.83in), IP30
- Mounting: Desktop or wall mount
- Environmental:
- Operating Temperature: -35°C to +75°C (-31°F to +167°F)
- Storage Temperature: -40°C to +80°C (-40°F to +176°F)
- Humidity: 5% to 95% (non-condensing)
- Additional Features: LED indicators (System, Online, Power, Error), watchdog, RTC, timer, grounding screw (M3)
- Approvals: CE (pending), RCM (pending), FCC (pending), NBTC (pending)
- Warranty: 2-5 years (standard TBD, consult KEYANS)
- Package Includes: KY511 RTU, 12V/1.5A power adapter, cellular antennas (2x), terminal blocks
